Fabricación de vidrio

Los productos como el vidrio para envases, el vidrio plano y el vidrio especial deben respetar tolerancias de fabricación estrictas y ciclos de producción cortos. Por su alto grado de integración, precisión y velocidad de medición, los sensores Micro-Epsilon se utilizan habitualmente en la industria del vidrio: los robustos sensores inductivos se integran en los equipos para detectar los movimientos de los equipos, mientras que los sensores ópticos asumen el monitoreo de los productos de vidrio en la línea de producción. Las principales variables de medición son el desplazamiento, la posición, el grosor, el color y la temperatura.

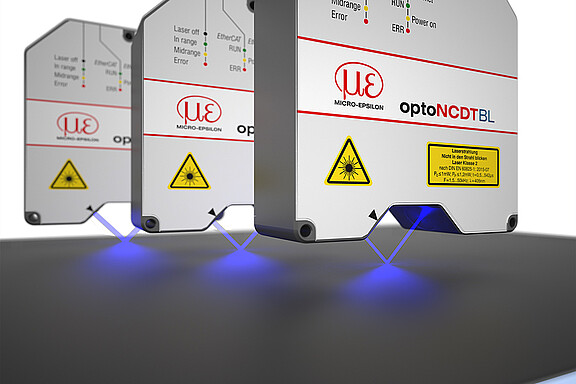

Distance measurement onto anti-reflective coated glass

Anti-reflective coated glass is inspected during the coating process using laser-optical displacement sensors from Micro-Epsilon in order to determine undulations and torsion. The planarity of the coated glass surface is measured in several…

Más información
Distance measurement onto anti-reflective coated glass

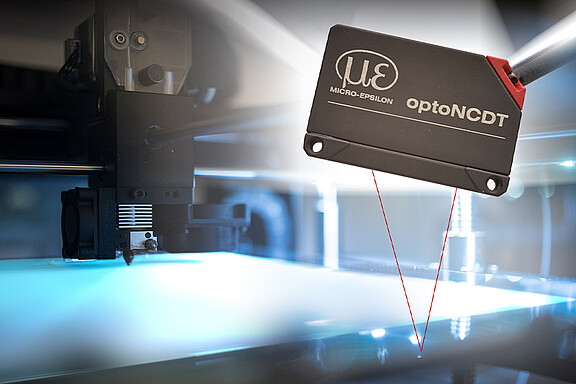

Distance control of print heads for glass printing

When printing on materials such as glass and ceramics, very fine detailed structures are applied on the carrier material, which requires precise positioning of the print head. For distance measurements, optoNCDT 1420 laser triangulation sensors…

Más información
Distance control of print heads for glass printing

Presence monitoring and identification of bottles

Laser scanners from Micro-Epsilon are used for high speed and fully automatic inspection of empty containers at bottlers and breweries. For this application, the Micro-Epsilon agent Tipteh has designed a test system based on laser line…

Más información
Presence monitoring and identification of bottles

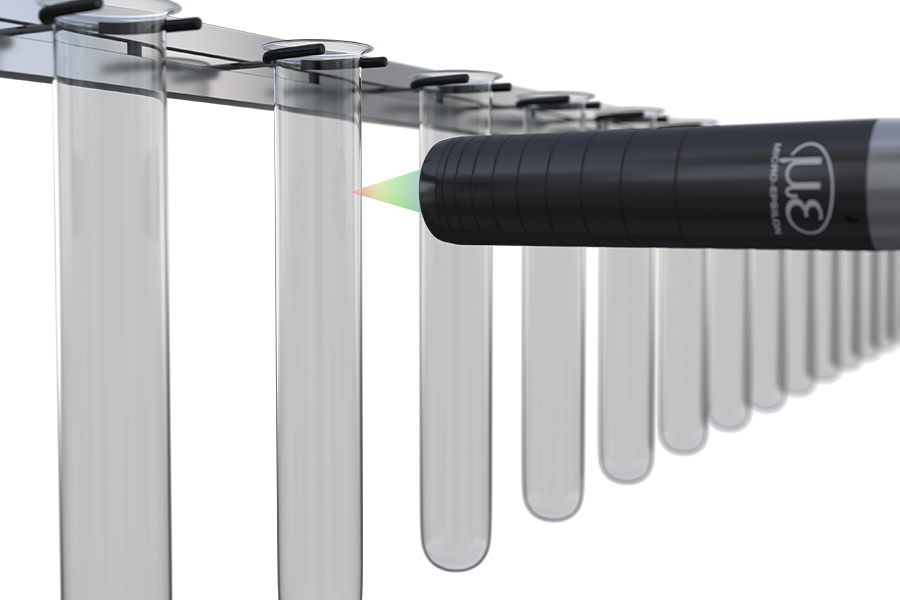

Bottom thickness measurement of container glass

With the wall thickness and roundness measurements in star wheel inspection machines, a fast measuring rate is required in order to support the ongoing process. Micro-Epsilon’s confocal chromatic measuring systems provide a high measuring rate…

Más información
Grosor del fondo de envases de vidrio médico

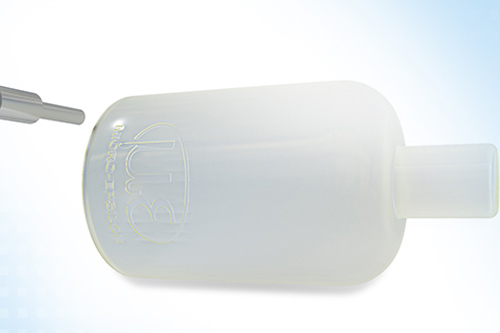

Marking detection on cosmetics bottles

Before the printing process, a reference mark is embossed into the bottles. Due to the depression of the embossment, the color of the reference mark deviates slightly from the rest of the bottle surface. The colorSENSOR CFO100 detects this…

Más información
Marking detection on cosmetics bottles

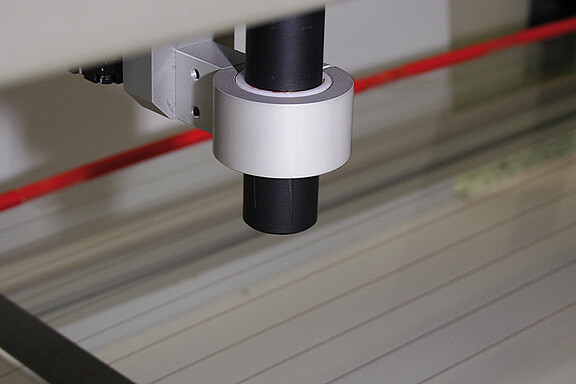

Thickness of glass coatings

Glasses are often reinforced with safety and security films which provide increased splinter protection. In order to measure the film layer and to determine the thickness of the applied adhesive, confocal chromatic sensors from Micro-Epsilon are…

Más información
Thickness of glass layers

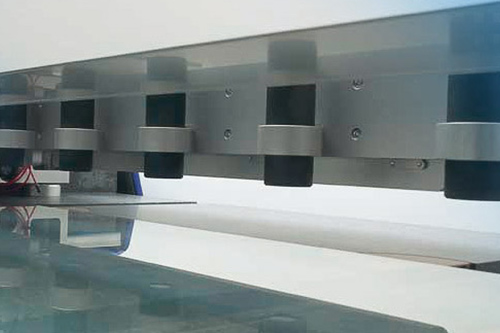

Planarity and thickness of display and flat glass

For the production of display glass, glass sheets with consistent thickness are required. The production process is regulated based on the measured results. Confocal chromatic sensors from Micro-Epsilon are used to detect the thickness from one…

Más información
Planarity and thickness of display and flat glass

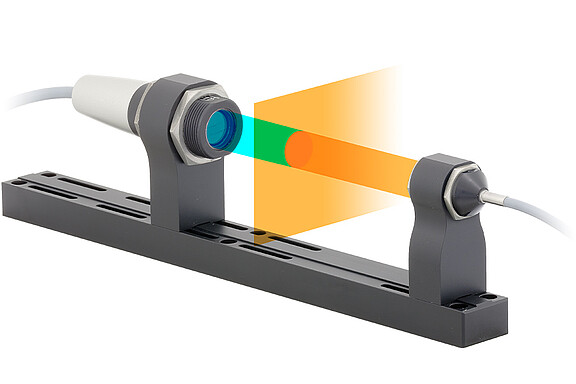

Color measurements of glass shades

The color is the crucial and visually distinctive feature of glass products. This is particularly true with natural and recycled raw materials based on varying compositions, where continuous and objective control of the color effect is an…

Más información
Color measurements of glass shades

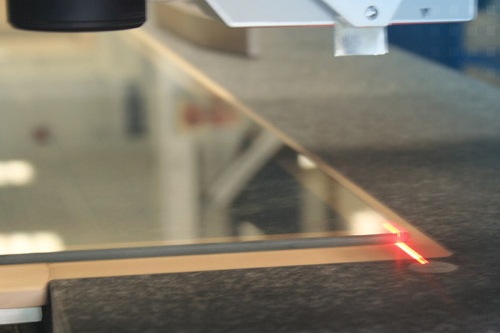

Edge measurement of glass

In many handling processes, precise positioning of glass sheets is required. The position of the sheets is determined via the detection of the glass edges. Laser profile sensors from Micro-Epsilon measure the edge position at several points and…

Más información
Edge measurement of glass

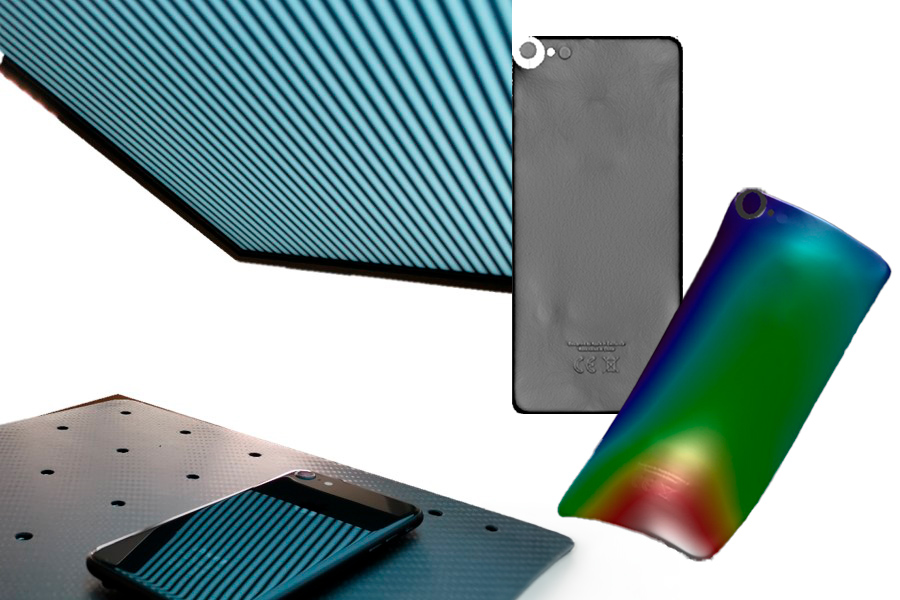

Surface inspection of smartphones

Fully automatic defect detection of shiny surfaces is performed using deflectometry systems which reliably detect the smallest of inclusions and defects. This technology enables the precise measurement of both the front and back of smartphones to…

Más información
Inspección de superficies de teléfonos inteligentes

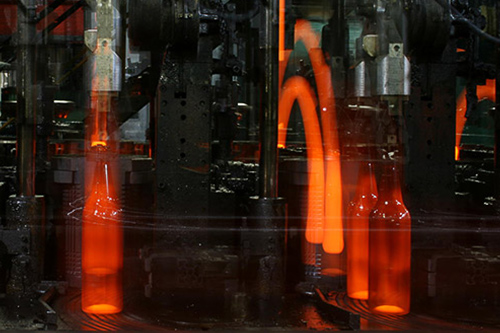

Plunger stroke in IS machines

For 24-hour operation in the glass production involving more than 5 million measuring cycles pear year, Micro-Epsilon has developed an inductive EDS displacement sensor. This sensor determines the exact plunger position in IS machines and allows…

Más información
Plunger stroke in IS machines

Roundness of bottles

With the roundness measurement of container glass, a fast measuring rate is required in order to support the ongoing process. Confocal chromatic sensors from Micro-Epsilon are used for thickness measurements in the star wheel while providing high…

Más información
Roundness of bottles

Gap monitoring of safety glass

For quality control and process control during the production of safety glass, confocal chromatic displacement sensors with a multi-peak function are used. Confocal chromatic sensors from Micro-Epsilon enable thickness measurements to micron…

Más información
Monitoreo de rendijas en vidrio de seguridad

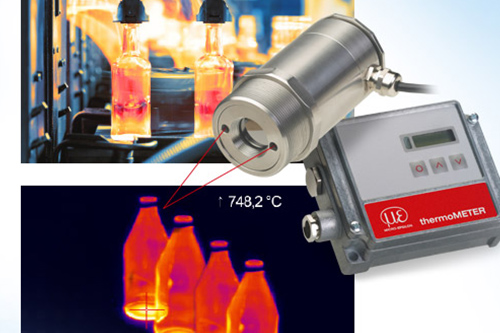

Non-contact temperature measurement when shaping container glass

In container glass production, the process relevant temperature must be inspected at different points. Non-contact temperature sensors are used during the shaping process that involves temperatures in excess of 500 °C. As the shaping process…

Más información
Non-contact temperature measurement when shaping container glass

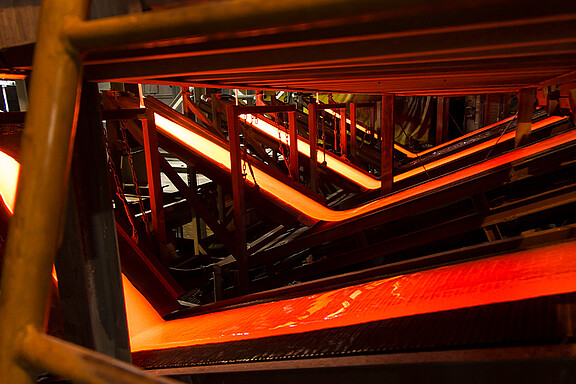

Temperature monitoring from the melting material to the cooling process

After the tin bath, flat glass has a temperature of approx. 600 °C. At the transition to the cooling zone and in the other subsequent cooling zones, thermoIMAGER infrared cameras are used for temperature inspection. Infrared cameras enable…

Más información
Temperature monitoring from the melting material to the cooling process

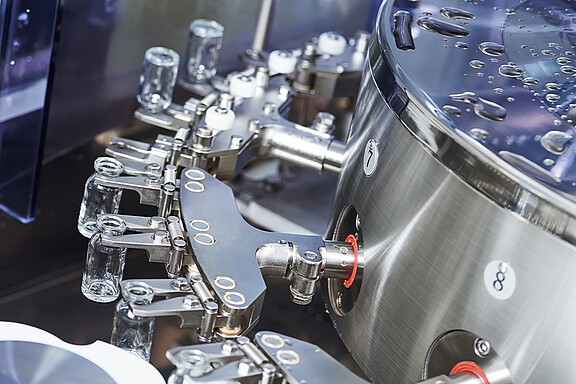

Wall thickness measurement of container glass

With the wall thickness and roundness measurements in star wheel inspection machines, a fast measuring rate is required in order to support the ongoing process. Micro-Epsilon’s confocal chromatic measuring systems provide a high measuring rate…

Más información
Wall thickness measurement of container glass

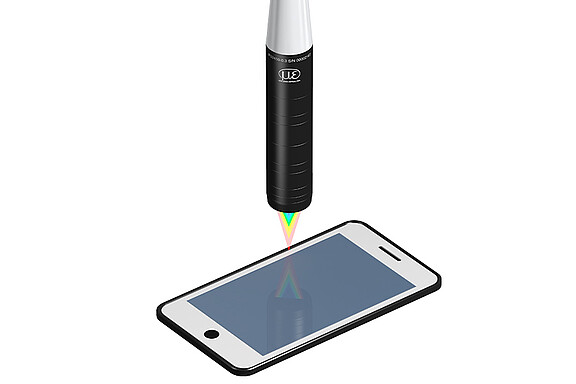

Assembly gap of display glass

After the assembly process of smartphone displays, it is important to inspect the mounting tolerances of the components in order to achieve continuous quality in all production batches. Confocal chromatic sensors travel over the components and…

Más información
Assembly gap of display glass

Inline color testing of facade glass

The color of glass is the crucial and visually distinctive feature of many different glass products. Color sensors from Micro-Epsilon are used in the coating of facade glass to check the color and tint during the production process. For this…

Más información
Inline color testing of facade glass
