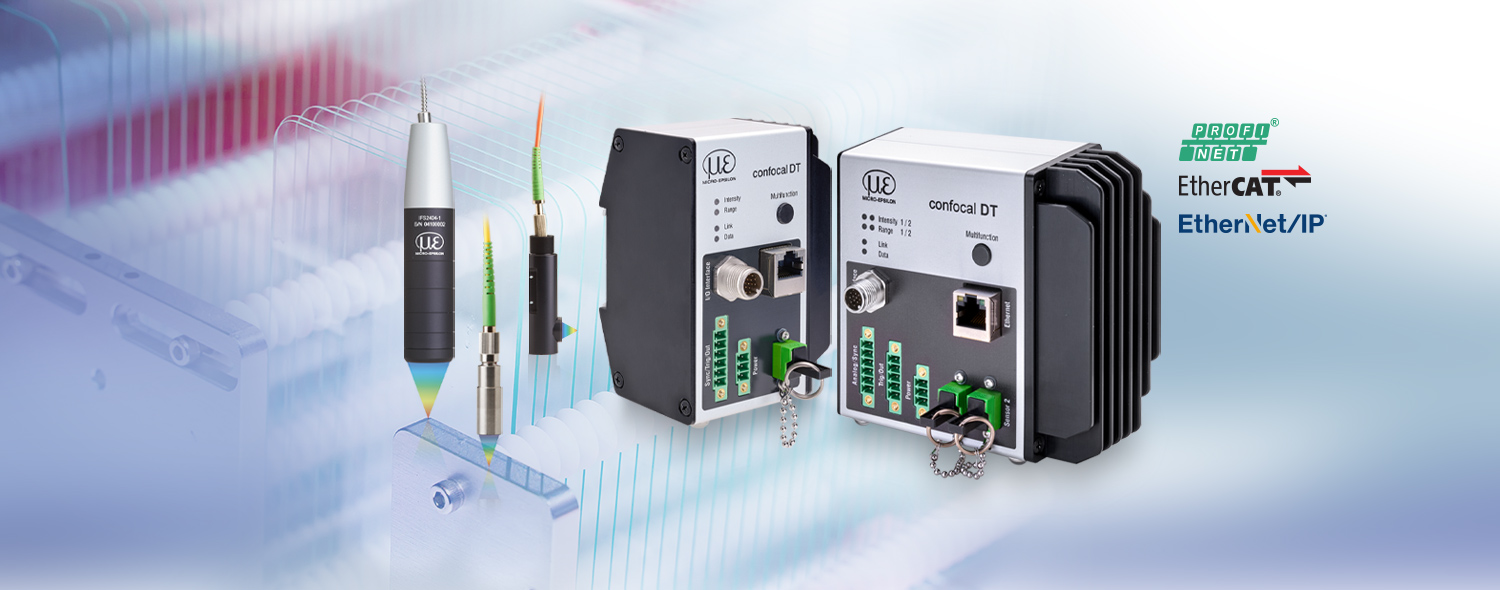

Powerful confocal chromatic controllers - precision meets compactness
The compact IFC2411 confocal chromatic controllers set new standards in non-contact distance measurement. They provide precise measurement results at high speed, take up hardly any space and therefore fit into even the smallest control cabinets. The flexible connection of various sensors enables measurements on almost all surfaces as well as one-sided thickness measurements on transparent objects. The system is particularly impressive in industrial series and OEM applications due to its excellent performance and outstanding price-performance ratio. Rely on maximum measurement accuracy in a space-saving format - for optimum efficiency in your production!
Characteristics
- High-precision measurements with 2 nm resolution
- Adjustable measuring rate up to 8 kHz for dynamic measurements
- Smallest confocal controller worldwide
- IP40 aluminum housing
- Numerous interfaces for easy integration: Ethernet, RS422, Industrial Ethernet
- Analog output (current & voltage)
- Encoder input
- Compatible with all confocalDT sensors (measuring ranges from 0.1 to 30 mm)
- Ideal for series applications and OEM

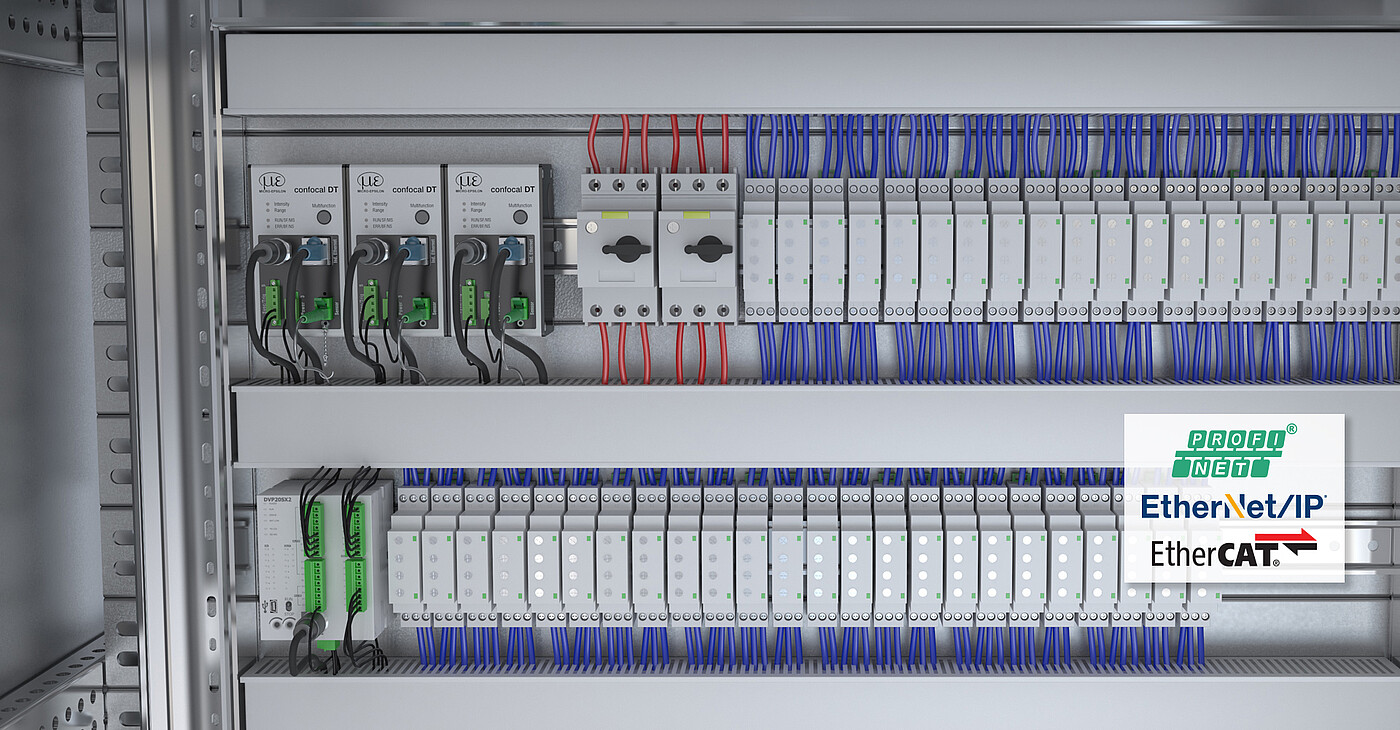

Developed for industry, OEM & automation
Equipped with various interfaces, the controller offers maximum flexibility for integration into machines and systems. Its robust IP40 aluminum housing ensures maximum protection even under harsh conditions, so that highest precision and signal stability can be achieved. The excellent price-performance ratio enables economical solutions from small to large series.

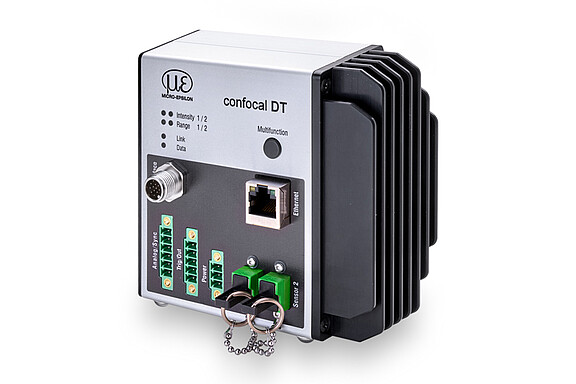

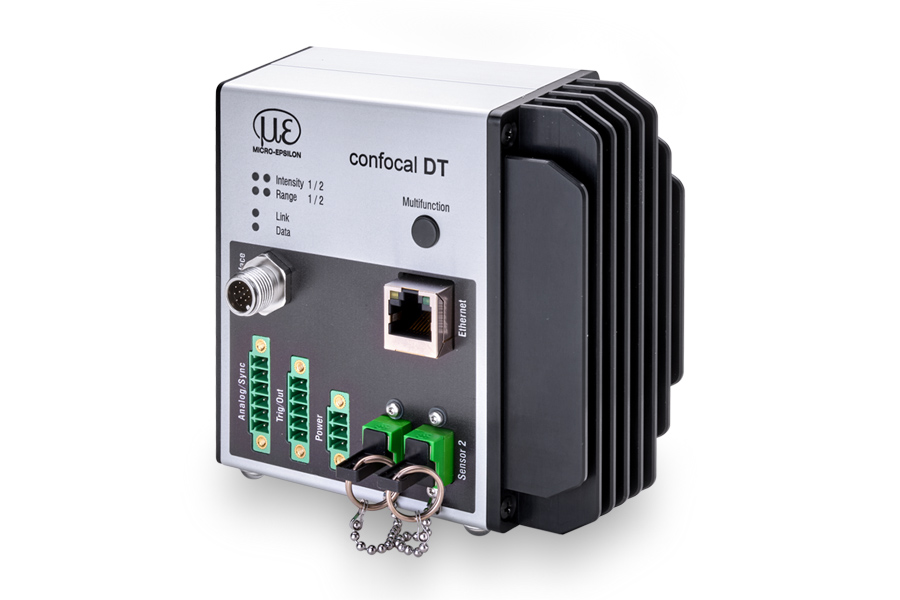

Now also available as the dual-channel version IFC2412

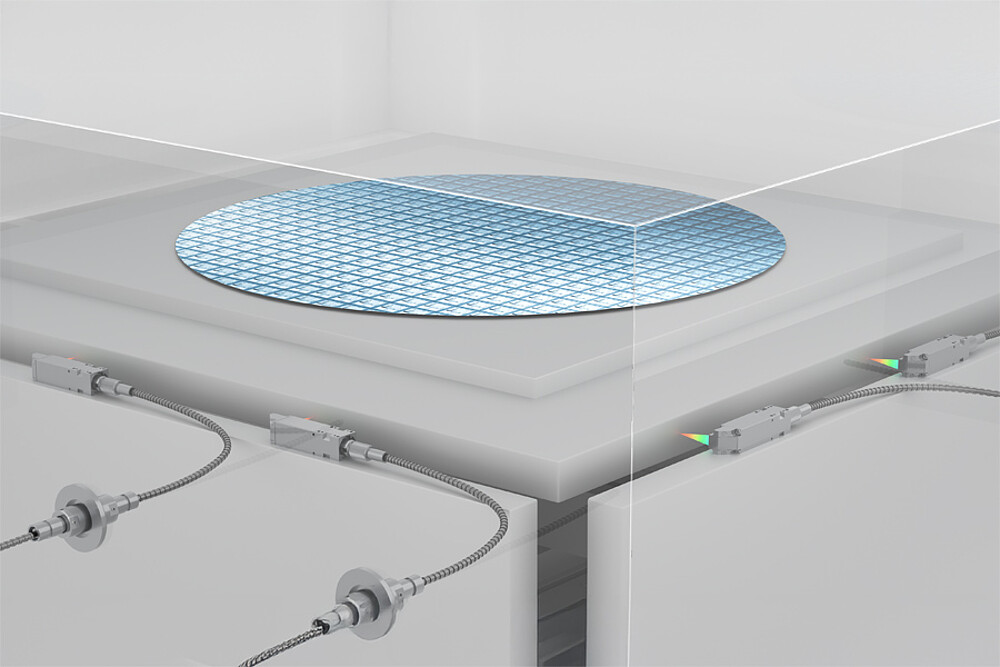

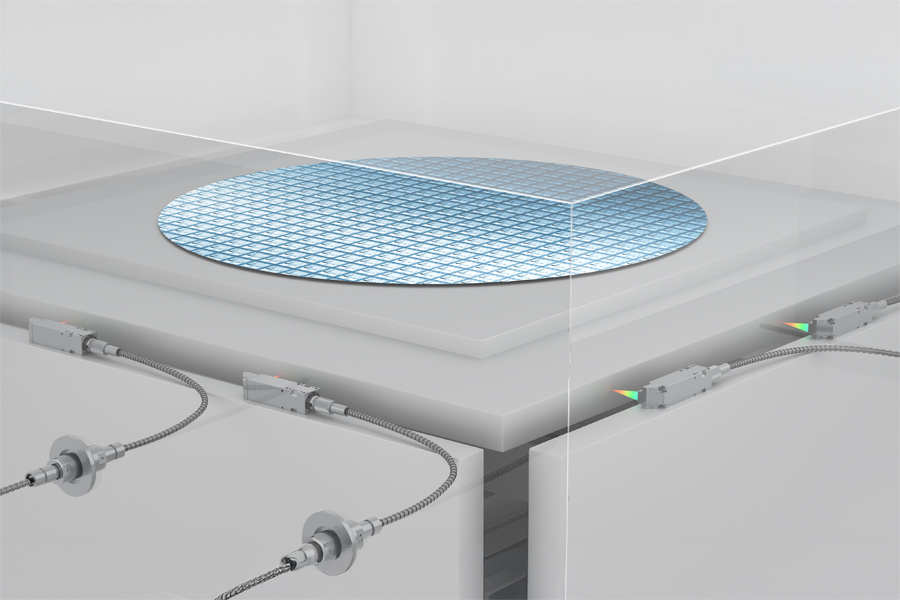

With the IFC2412, a dual-channel version of the IFC2411 controller is now also available. The IFC2412 has two channels with an adjustable measuring rate of 8 kHz and a submicrometer resolution of up to 2 nm. The low-cost and compact controllers expand the range of applications in the semiconductor, battery and machine building sectors. This means that two-sided thickness measurements can now also be performed with just one controller.

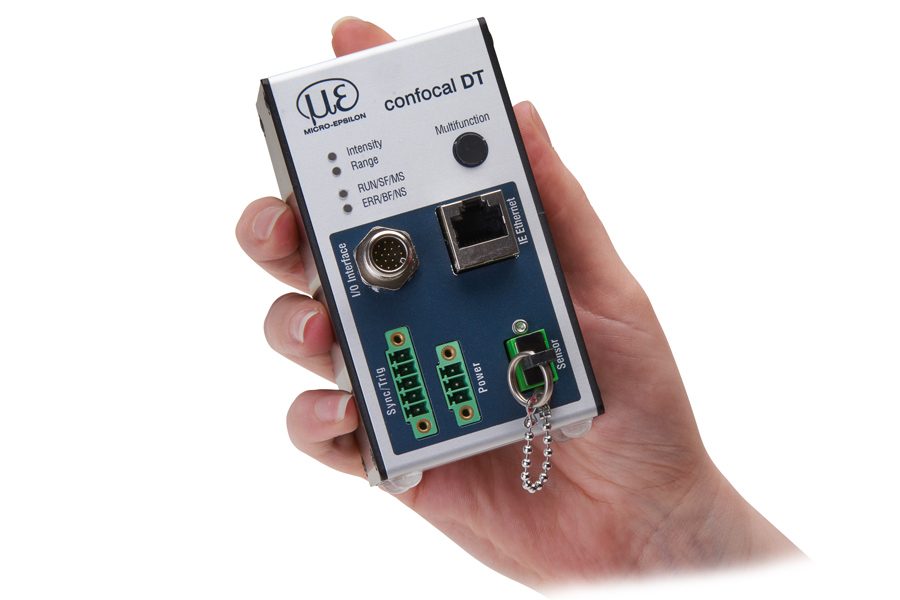

Smallest controller in the world
Its extremely compact and worldwide unique design allows for the controller to be easily integrated into existing installations and systems. The housing is up to 300% smaller than comparable controllers and extremely lightweight at 460 grams. It can be quickly mounted on a DIN rail and fits into even the smallest control cabinets.
Simple operation via web interface
Due to a user-friendly web interface, no additional software is necessary to configure the controller and the sensors. The web interface can be accessed via Ethernet and provides set up and configuration options. For thickness measurements, materials are stored in an expandable materials database.
