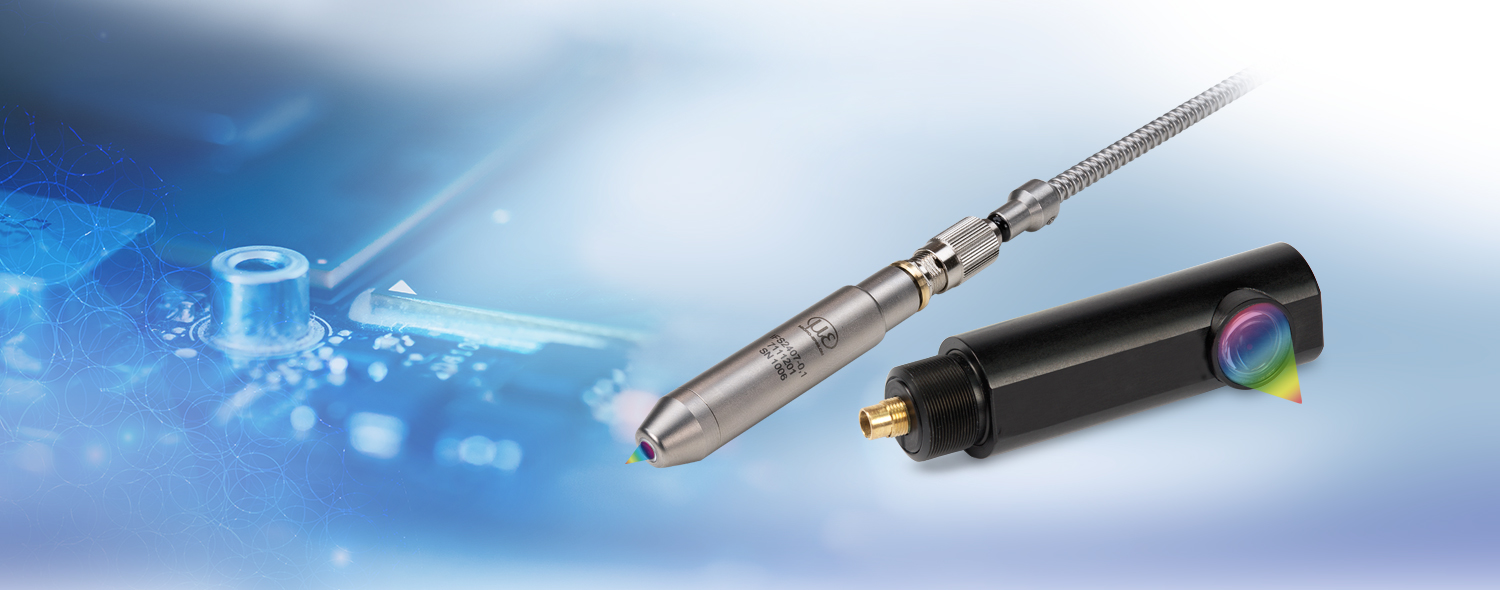

Confocal sensors for high precision distance, roughness & thickness measurements
confocalDT IFS2407 sensors are designed for high precision measurement of distance, roughness and thickness. These confocal chromatic sensors offer a high numerical aperture, a small light spot diameter and tolerate large measurement angles, which means that the sensors can also be used for roughness measurements. In addition, the sensors impress with nanometer accuracy.

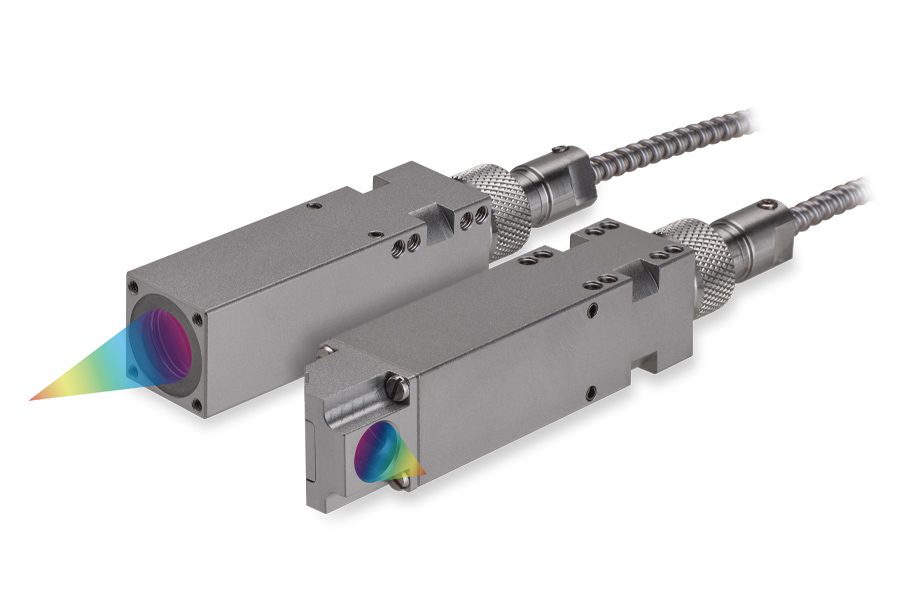

Sensores confocales DT IFS2407-xHT para altas temperaturas
- Mediciones fiables a temperaturas ambiente de hasta 200 °C
- Rangos de medición ('mm): 0.8 | 2 | 4
- Rango de temperatura: máx. 200 °C
- Linealidad: máx. < ±0,18 µm
- Resolución: máx. < 6 nm
- Carcasa de acero inoxidable 1.4404
- Compatibles con vacío hasta UHV
- Variantes 90°

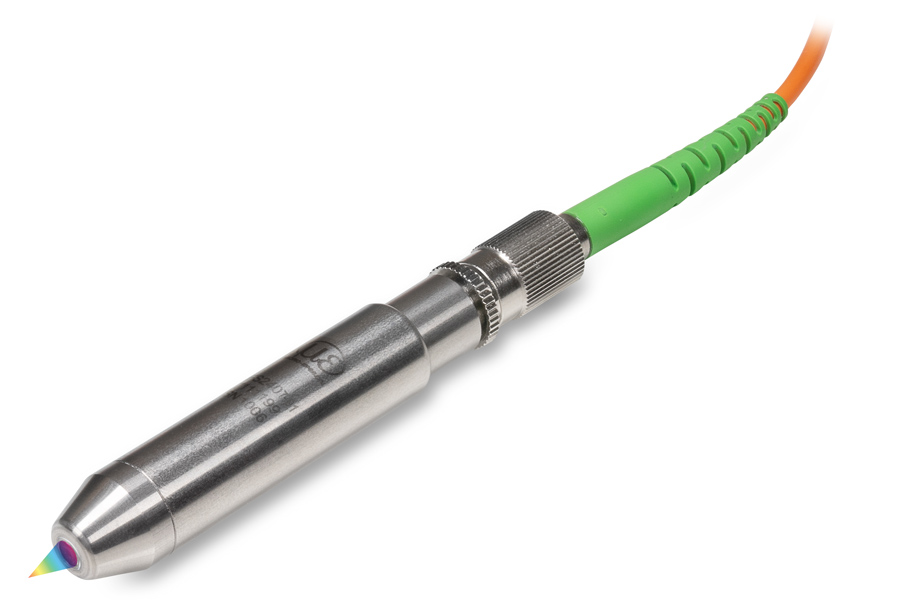

confocalDT IFS2407-0,1
- Measuring range (mm): 0.1
- Linearity: max. 0.05 µm
- Resolution: max. 3 nm
- Ideal for distance and roughness measurements
- Light-intensive sensor variant for high speed processes available (NA 0.7)
- Small measurement spot size: 3 µm
- High sensitivity and large measure angle
- Thickness measurement of transparent objects from 5 µm

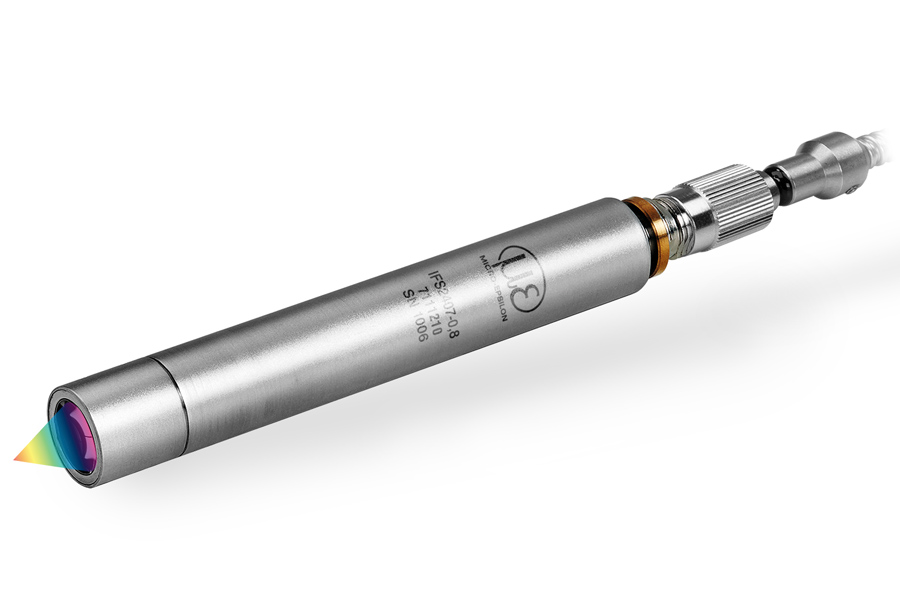

confocalDT IFS2407-0,8
- Rango de medición (mm): 0.8
- Linealidad: máx. 0.2 µm
- Resolución: máx. 24 nm
- Punto de luz pequeño
- Diseño de sensor ahorra-espacio
- Medición precisa de la distancia incluso con superficies curvas
- Ideal para medir el espesor de capas ultrafinas

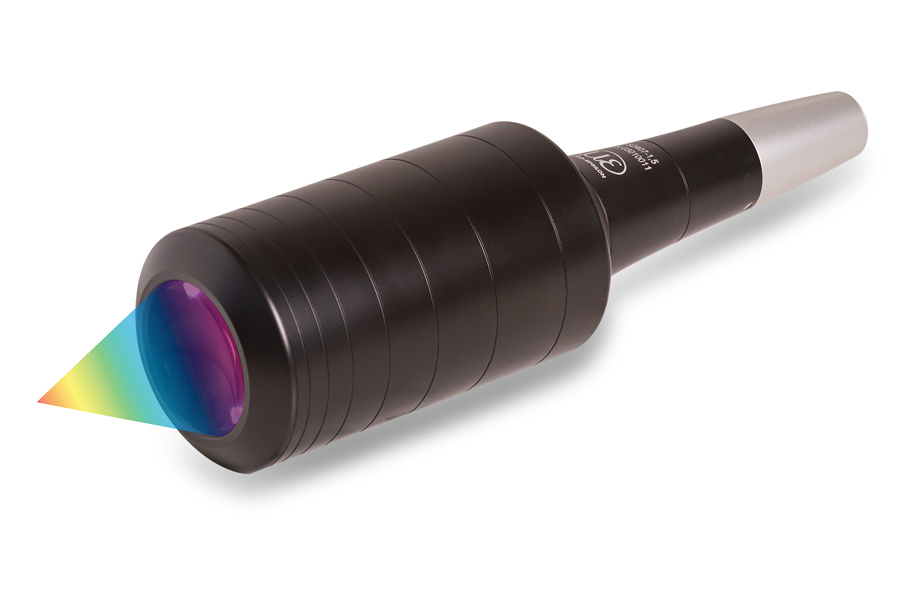

confocalDT IFS2407-1,5
- Measuring range (mm) 1.5
- Extremely small measurement spot of 5.5 µm
- Measuring angle >± 43°
- Light-intensive model (NA > 0.7)
- High precision measurement on curved and mirroring surfaces
- Stable measurement on structured surfaces

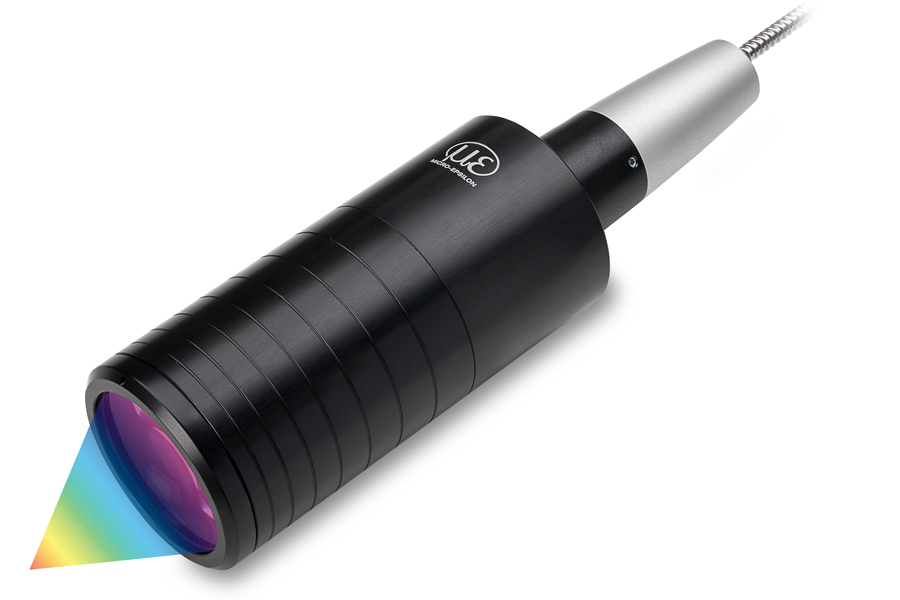

confocalDT IFS2407-3
- Measuring range (mm): 3
- Linearity: max. 0.5 µm
- Resolution: max. 13 nm
- Large offset distance approx. 28 mm
- Max. measure angle ± 30°
- Ideal for measurements on curved and reflecting surfaces

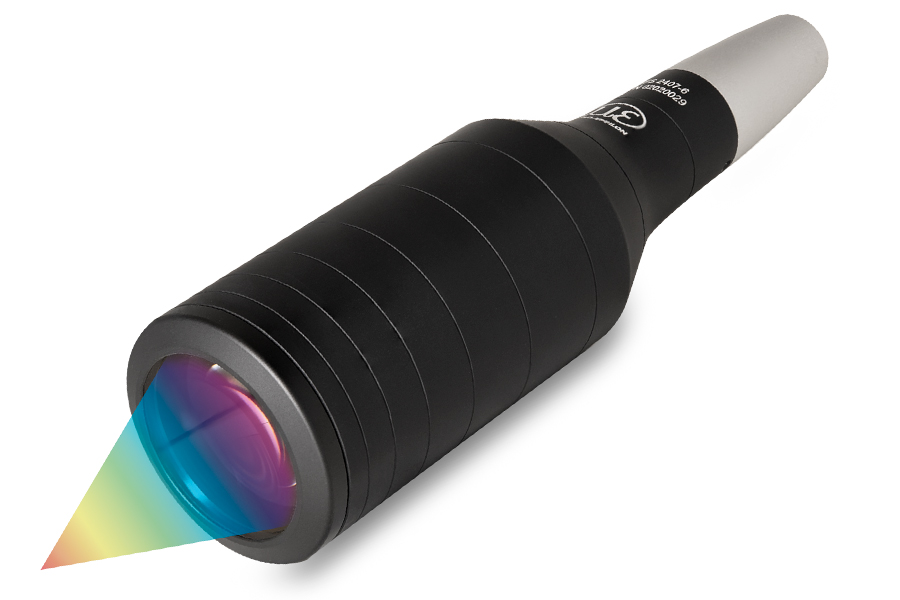

confocalDT IFS2407-6
- Measuring range (mm): 6
- Linearity: max. 1 µm
- Resolution: max. 15 nm
- Large offset distance approx. 32 mm
- Ideal for fast, high-precision measurements on challenging surfaces
- High light intensity even on dark/poorly reflecting surfaces

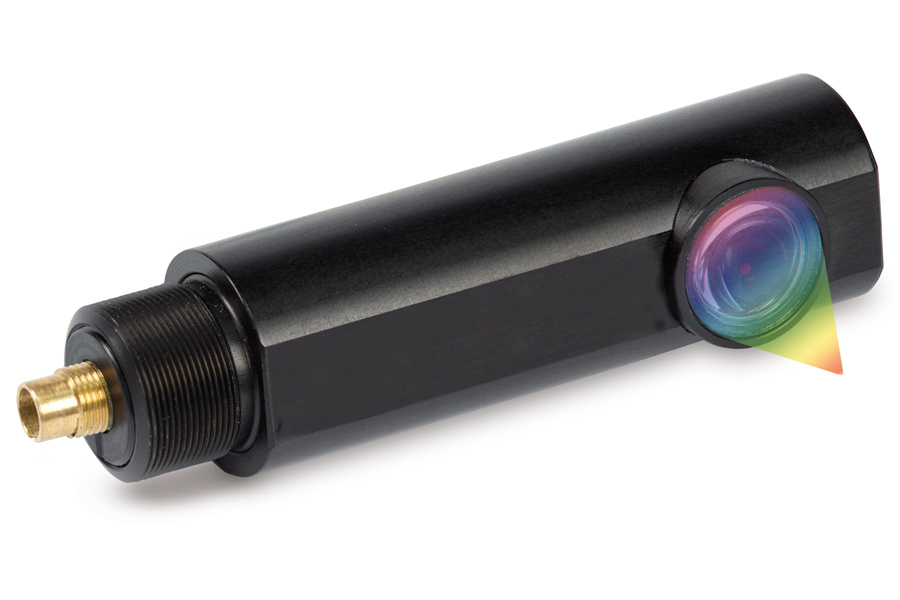

confocalDT IFS2407/90-0,3
- Measuring range (mm): 0.3
- Linearity: max. 0.15 µm
- Resolution: max. 6 nm
- Ideal for displacement and roughness measurements
- Small measurement spot size: 6 µm
- High sensitivity and large measure angle
